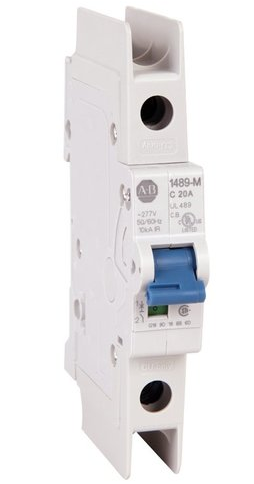

Allen-Bradley 1489-M1C020 Breaker, Miniature, 2A, 1P, 277VAC, 48VDC

Allen-Bradley 1489-M Series 1-Pole Type C Curve Miniature Circuit Breaker, 20 A, 230/277 VAC, 48 VDC, 10 KA Interrupt Rating

PDF: 1489-M CIRCUIT BREAKERS DATA SHEET

Miniature Circuit Breaker, Voltage Rating: UL/CSA: 277 VAC, 48 VDC, EN/IEC: 230 VAC, Amperage Rating: 2 A, Interrupt Rating: 10 KA, Number Of Poles: 1, Trip Type: Type C Curve, Frequency Rating: 50/60 HZ, Trip Range: 0.5 - 40 A, Dielectric Strength: 2 KV, Enclosure: IP20, IP40, Length: 67 MM, Width: 17.5 MM, Height: 111 MM, Temperature Rating: -25 To 55 DEG C Ambient, Environmental Conditions: Storage Temperature: -40 To 70 DEG C, Humidity: 90 - 96%, Shock: 25 G - 2 shocks - 13 MS, Vibration: 5 G - 20 Cycles at 5 - 150 HZ With Load 0.8 IN, Mounting: DIN Rail

• Current limiting
• Fast breaking time
• High rated voltage
• Superior shock and vibration resistance to help prevent nuisance tripping
• Dual terminals allow a more secure connection of two wires, or both a wire and bus bar
• Terminal design helps prevent wiring misses by directing wires into the terminal openings, even while tightening
• Reversible line and load connections
• Single and multi-pole toggle mount lock out attachments available for lockout/tagout (LOTO)
• Suitable for extreme ambient conditions
• Standards: UL listed, UL file number E197878, CSA certified, CSA file number 259391, CE marked, VDE certified, CCC certified, RoHS compliant, UL 489, CSA C22.2 number 5.1, EN 60947-2, GB 14048.2
