Miniature Circuit Breaker, Voltage Rating: UL/CSA: 277 VAC, 48 VDC, EN/IEC: 230 VAC, Amperage Rating: 2 A, Interrupt Rating: 10 KA, Number Of Poles: 1, Trip Type: Type B Curve, Frequency Rating: 50/60 HZ, Trip Range: 3 - 5 Times Of A, Dielectric Strength: 2 KV, Enclosure: IP20, IP40, Material: RAL 7035 Housing, Length: 67 MM, Width: 17.5 MM, Height: 88 MM, Temperature Rating: -25 To 55 DEG C Ambient, Environmental Conditions: Storage Temperature: -40 To 70 DEG C, Humidity: 90 - 96%, Shock: 25 G - 2 shocks - 13 MS, Vibration: 5 G - 20 Cycles at 5 - 150 HZ With Load 0.8 IN, Mounting: DIN Rail, Operating Cycles: 20000

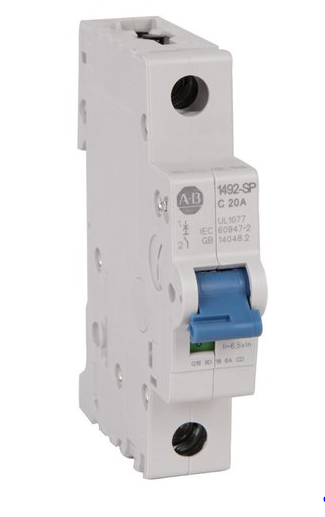

ALLEN BRADLEY MINIATURE CIRCUIT BREAKER Energy limiting supplementary protectors/miniature circuit breakers. In case of a short circuit or thermal overload, these devices are designed to protect equipment, systems, and cables by a quick disconnection. Fast breaking time Existing installations can be easily upgraded to include an auxiliary using the bottom mounted auxiliary contact options, which require no DIN rail space 40 DEG C calibration temperature (UL/CSA) eliminates need to derate for 508A industrial control panel installations Installation of up to six accessories on the same circuit breaker Dual terminals allow a more secure connection of two wires, or both a wire and bus bar Superior shock and vibration resistance to prevent nuisance tripping Terminal design helps prevent wiring misses by directing wires into the terminal openings, even while tightening Reversible line and load connections Single and multi-pole toggle mount lock out attachments available for lockout/tagout (LOTO) Suitable for extreme ambient conditions Thermal magnetic supplementary protectors provide over current protection for equipment where branch circuit protection is already provided, or is not required These devices are also miniature circuit breakers as defined by IEC standards Standards: UL recognized, file number E65138, CSA certified, file number 259391, CE marked, CCC certified, VDE certified, RoHS compliant, UL 1077, CSA C22.2 number 235, EN 60947-2, GB 14048.2 Applications: For use in limiting current
Specifications | |||||
Brand Name: | Allen Bradley | ||||
Category: | Miniature Circuit Breakers | ||||
Number of Poles: | 1 | ||||
Trip Range: | 3 - 5 Times of A | ||||
Trip Type: | Type B Curve | ||||
UNSPSC | 39121603 | ||||
Voltage Rating: | UL/CSA: 277 VAC, 48 VDC, EN/IEC: 230 VAC | ||||
Amperage Rating | 2:00 AM | ||||
Interrupt Rating | 10 KA | ||||
Width: | 17.55 MM | ||||
Dimensions | 17.5 x 69 x 88 mm | ||||
Breaking Capacity | 15 kA | ||||
Mounting Type | DIN Rail Mount | ||||
Reset Actuator Type | Toggle | ||||
Dieletric Strength | 2 KV | ||||
Enclosure | IP20, IP40 | ||||
Material | RAL 7035 Housing | ||||
Length | 67MM | ||||
Height | 88MM |
